W Rubber Fender
W rubber fenders are widely used for tugboats, workboats and ship side protection. YT Marine manufactures molded W fenders with existing profile sizes, and cuts segment lengths according to the confirmed vessel layout.
W Rubber Fenders for Tugboats, Workboats and Vessel Side Protection
W rubber fenders are heavy-duty profile fenders with a ribbed outer surface and multiple inner cavities for marine impact protection. They are widely used on tugboat sides, workboats, small vessels and other ship side fendering positions.

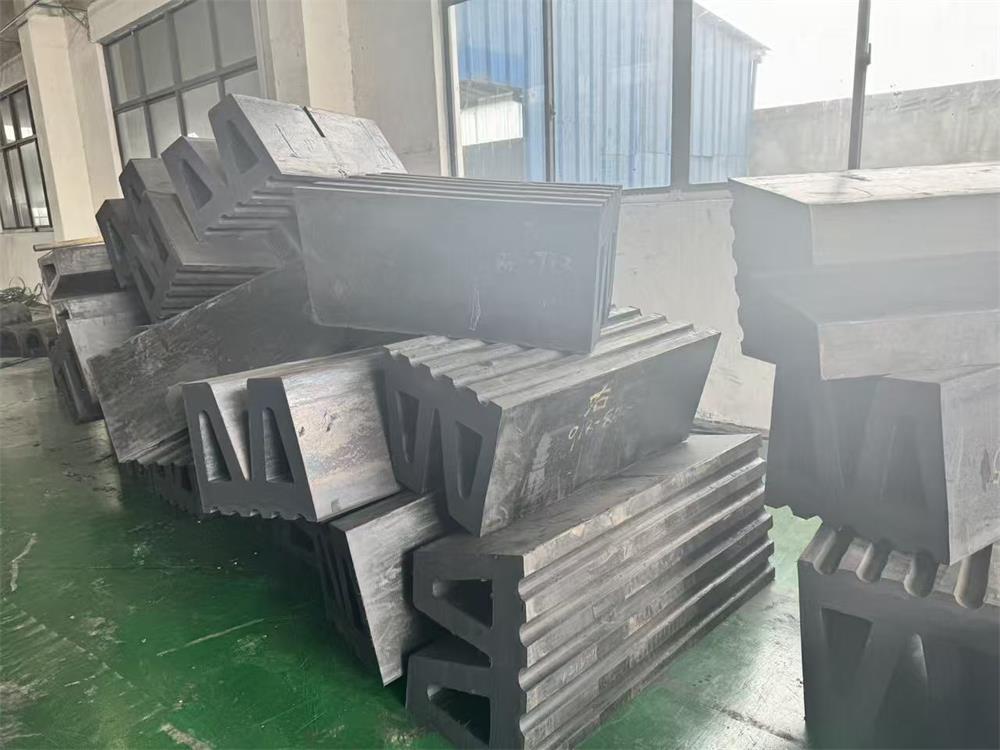

YT Marine manufactures W rubber fenders mainly with existing mold profiles in different standard sizes. For tugboat side protection, W fenders are usually cut into multiple segments with different L1 and L2 lengths to follow the hull curve and match the port, starboard and center installation positions. Cutting details and installation layout can be arranged based on the confirmed vessel drawing before production.
Table of Contents
Quick Information About W Rubber Fenders
Check the key profile, length cutting, installation and production options before selecting W rubber fenders for tugboats, workboats and vessel side protection projects.
W Rubber Fender / W Type Rubber Fender
W Fender / Rubber W Fender / W Type Fender / Tugboat W Fender
Standard Molded W Profiles / Existing Mold Sizes
Segment Cutting / Different L1 and L2 Lengths / Port & Starboard Layout
Molded Natural Rubber / Produced with Existing Molds
Tugboats, workboats, vessel sides, bow and stern fendering areas

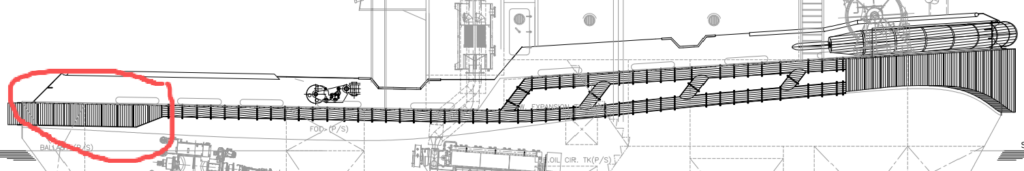

W Fender Segment Cutting and Vessel Layout

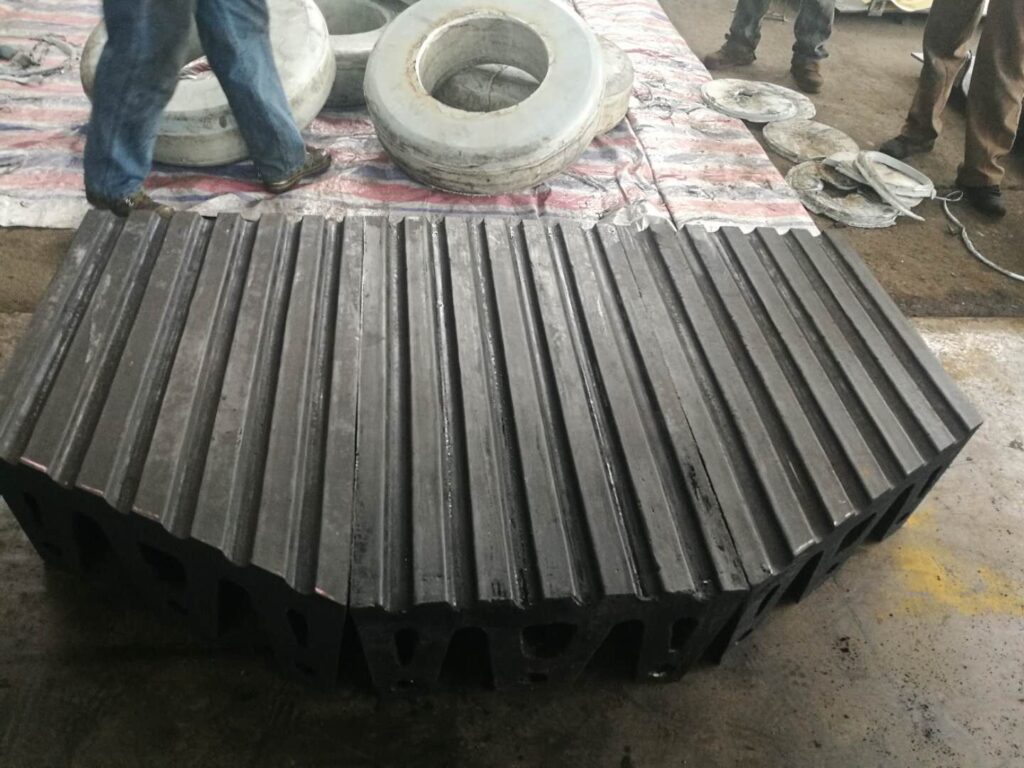

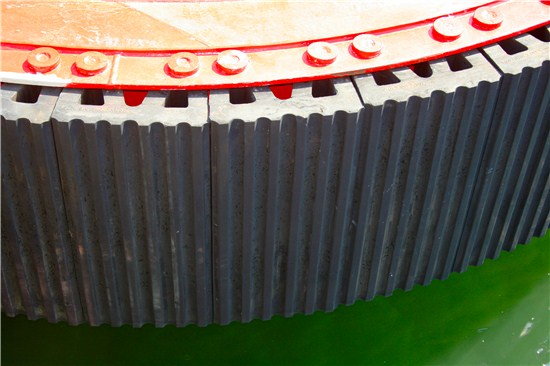

W rubber fenders are normally produced with existing molded profiles, while the final installation length is arranged according to the vessel drawing. For tugboat and workboat side protection, one fender line is often divided into multiple segments to follow the hull curve, bow area, stern area and port / starboard installation positions.

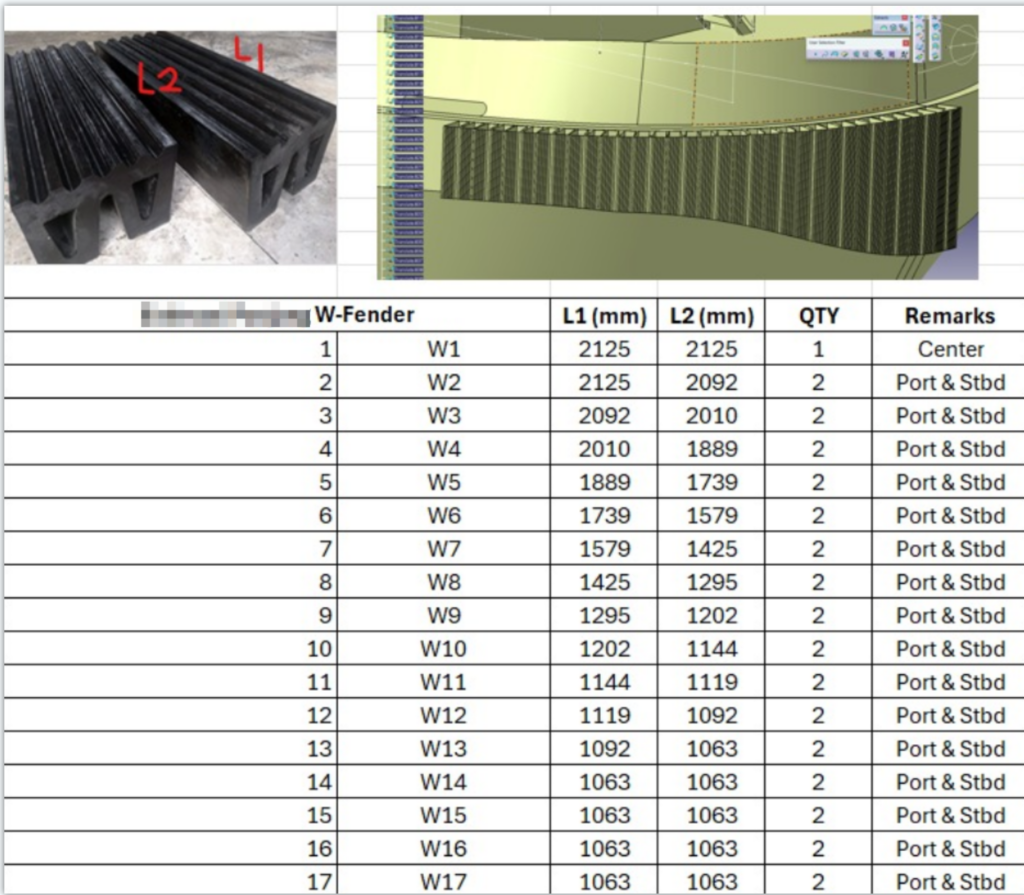

Each segment may have different L1 and L2 lengths, especially on curved vessel sides. YT Marine can cut W fenders according to the confirmed fender layout before shipment, helping the segments match the required installation sequence on site.
Key Features of W Rubber Fenders
W rubber fenders are designed for heavy-duty tugboat and workboat side protection. Their ribbed contact surface, molded W profile and segmented cutting arrangement help the fender system fit curved vessel sides and repeated berthing impact conditions.

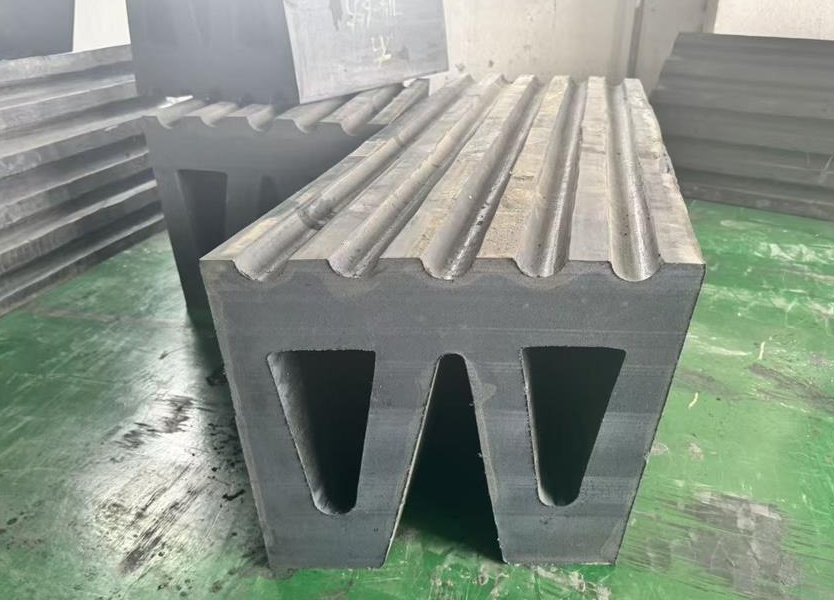

The ribbed outer surface helps improve contact performance and provides durable protection during vessel-to-vessel or vessel-to-berth contact.
W fenders are produced with strong molded rubber profiles, suitable for tugboats, workboats and other vessel side protection areas.
The multi-cavity W structure helps balance strength, compression and impact absorption for demanding marine fendering applications.
W fenders can be cut into different segment lengths according to the confirmed vessel drawing and installation sequence.
Most W fenders are produced with existing mold sizes. Length cutting and layout arrangement are usually customized, while the main profile follows available molds.
W rubber fenders are commonly used on tugboat sides, workboat sides, bow and stern areas, often together with D or cylindrical rubber fenders.
Standard W Fender Sizes and Installation Options
W rubber fenders are usually selected according to vessel type, hull layout and installation position. YT Marine manufactures W fenders with existing mold sizes, while the final segment length can be cut according to the confirmed vessel drawing and installation requirements.
Standard W Fender Sizes and Installation Options
| Item | Options |
|---|---|
| Product Type | W Rubber Fender / W Type Rubber Fender |
| Profile Type | Standard molded W profile |
| Available Sizes | Produced with existing mold sizes |
| Length | Cut to required segment length according to vessel layout |
| Segment Layout | Different L1 and L2 lengths for port, starboard and center positions |
| Production Method | Molded natural rubber |
| Installation Basis | Confirmed vessel drawing and fender arrangement |
| Applications | Tugboats, workboats, vessel sides, bow and stern fendering areas |
Standard sizes are based on existing molds. Final segment length and installation layout are confirmed according to project drawings.
Available W Fender Mold Sizes
The following chart shows common W rubber fender profiles based on existing molds. Final profile selection should be confirmed according to vessel type, hull curve, installation position and project requirements. Segment lengths can be cut according to the confirmed fender layout before shipment.
Need W Rubber Fenders for Your Tugboat or Workboat Project?
Send us your vessel drawing, fender layout and required quantity. YT Marine can manufacture W rubber fenders and arrange segment cutting according to the confirmed installation layout.
Applications of W Rubber Fenders
W rubber fenders are mainly used for tugboats, workboats and vessel side protection. They are often installed along curved hull areas and can work together with cylindrical, D type or other rubber fenders to build a practical side fendering system.
Used on tugboat sides to help absorb impact during pushing, berthing and vessel contact operations.
Suitable for workboats, service vessels and small commercial vessels that need durable side protection.
Can be cut into different segment lengths to follow curved vessel sides, bow areas and stern areas.
Often used together with cylindrical, D type or other rubber fenders according to the vessel fendering layout.
Quality Inspection and Shipment

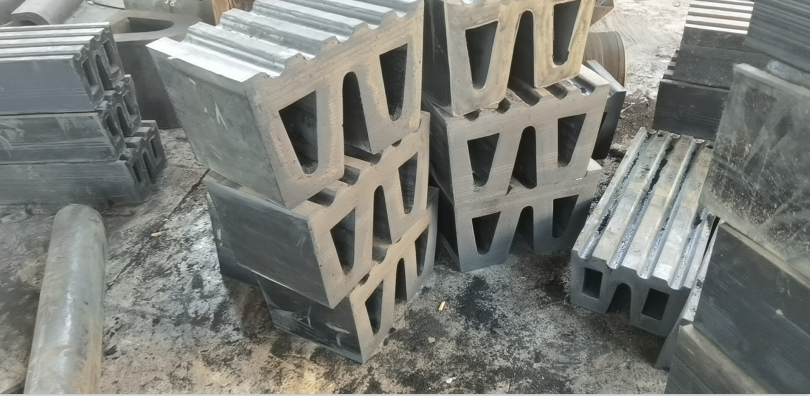

Before shipment, W rubber fenders can be checked for appearance, profile shape, dimensions, segment length, cutting details, marking, packing condition and quantity. For tugboat and workboat projects, the final segment length and installation sequence are confirmed according to the approved fender layout before production and delivery.
- Profile shape and dimension checking
- ISegment length and cutting detail confirmation
- L1 / L2 length and installation sequence checking
- Appearance and surface condition inspection
- Model, marking and quantity checking
- Packing condition and shipment arrangement
FAQ About W Rubber Fenders
What are W rubber fenders used for?
W rubber fenders are mainly used for tugboats, workboats and vessel side protection. They help protect the hull during pushing, berthing and vessel contact operations.
Can W fenders be used together with other tugboat fenders?
Yes. W rubber fenders are often used together with cylindrical rubber fenders, D type fenders and other tugboat fender profiles to build a complete side protection system.
Can the length of W rubber fenders be customized?
Yes. W fenders can be cut into different segment lengths according to the confirmed vessel drawing and fender layout. For curved hull areas, different L1 and L2 lengths may be required.
What information should I provide for a W fender inquiry?
Please send the vessel drawing, fender layout, required profile size, segment lengths, quantity and installation position. If you already have a cutting list or port / starboard layout, it will help us check the project faster.
Are W rubber fenders suitable for curved vessel sides?
Yes. W rubber fenders can be arranged in segmented layouts to follow curved vessel sides, bow areas and stern areas. The final cutting arrangement should be confirmed according to the vessel layout.
How are W fenders checked before shipment?
Before shipment, W rubber fenders can be checked for profile shape, dimensions, segment length, cutting details, surface condition, marking, quantity and packing condition.
Can YT Marine provide W fenders for tugboat repair or replacement projects?
Yes. YT Marine can manufacture W rubber fenders for new tugboat builds, repair projects and replacement requirements. Customers can provide existing fender dimensions, photos or vessel drawings for checking.
Need W Rubber Fenders for Your Tugboat or Workboat?
Send us your vessel drawing, fender layout, required segment lengths and quantity. YT Marine can manufacture W rubber fenders and arrange cutting details according to the confirmed installation layout.
