GD Rubber Fender for Dock and Quay Protection

GD rubber fenders are heavy-duty dock bumper fenders for dock edges, quay walls, berthing structures and corner protection. YT Marine manufactures GD280H and GD300H profiles with standard size, fixing hole layout and reference performance data.

GD Rubber Fender Profiles and Fixing Layouts

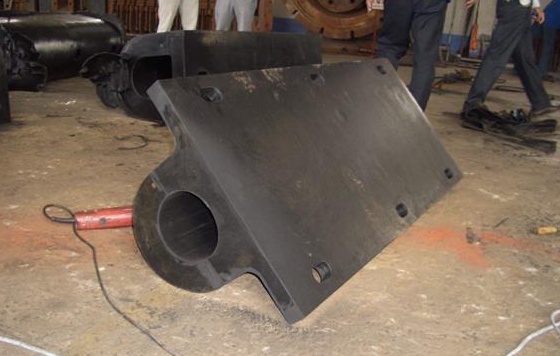

GD rubber fenders are heavy-duty dock bumper profiles with a wide mounting base, hollow rubber structure and pre-drilled fixing holes. YT Marine manufactures standard GD280H and GD300H profiles for dock and quay protection projects, with fixing hole layout confirmed according to drawings or site installation requirements.

Quick Information About GD Rubber Fenders

GD rubber fenders are available in standard GD280H and GD300H profiles, with length, fixing hole layout and installation details selected according to dock or quay protection requirements.

Product Type

GD Rubber Fender / Dock Bumper Fender

Common Names

GD Fender / GD Type Fender / Dock Rubber Bumper / Dock Edge Fender

Standard Models

GD280H / GD300H

Length Options

1000L / 1500L / 2000L / 2500L / 3000L

Fixing Options

Pre-Drilled Holes / Wide Mounting Base / Bolt Fixing Layout

Applications

Dock edges, quay walls, berthing structures and corner protection areas

Standard GD rubber fender profiles are available for regular dock and quay projects. Fixing holes, bolt spacing and installation details can be confirmed according to drawings or site requirements.

Key Features of GD Rubber Fenders

GD rubber fenders are designed for durable dock, quay wall and berthing structure protection. With a heavy-duty rubber body, wide mounting base, hollow impact structure and pre-drilled fixing layout, they provide practical protection for dock edge and marine contact areas.

Heavy-Duty Rubber Body

GD rubber fenders provide a strong rubber contact surface for repeated vessel contact and dock-side impact protection.

Wide Mounting Base

The wide base helps support stable installation on dock edges, quay walls, concrete structures or steel fixing surfaces.

Hollow Impact Structure

The hollow rubber profile provides deformation space and helps absorb impact during berthing or side contact.

Standard GD Models

GD280H and GD300H models are available with common length options for regular dock and quay protection projects.

Pre-Drilled Fixing Layout

Fixing holes and bolt spacing can be arranged according to standard drawings or site installation requirements.

Dock and Quay Applications

GD fenders are used for dock edges, quay walls, berthing structures, corner areas and other marine contact locations.

GD Rubber Fender Specifications and Size Options

GD rubber fenders are selected according to dock structure, quay wall layout, fixing surface, contact area and berthing conditions. YT Marine manufactures standard GD280H and GD300H rubber fender profiles for dock and quay protection projects, with length, fixing hole layout and installation details arranged according to drawings or site requirements.

Standard GD Fender Profiles

Item	Options
Product Type	GD Rubber Fender / Dock Bumper Fender
Common Names	GD Fender / GD Type Fender / Dock Rubber Bumper / Dock Edge Fender
Standard Models	GD280H / GD300H
Fender Profile	Heavy-duty GD-shaped rubber profile with wide mounting base and hollow impact structure
Structure Design	Hollow rubber body with pre-drilled fixing holes and bolt fixing layout
Length Options	1000L / 1500L / 2000L / 2500L / 3000L or customized length
Fixing Options	Pre-drilled holes, customized bolt spacing and project-specific fixing layout
Installation Surface	Dock edge, quay wall, concrete structure or steel fixing surface
Applications	Dock edges, quay walls, berthing structures, corner protection and marine contact areas
Selection Basis	Model size, fender length, fixing surface, bolt layout, contact area and berthing conditions

GD Rubber Fender Size, Drawing and Performance Data

The following information shows standard GD280H and GD300H rubber fender dimensions, fixing hole layout and reference performance data. Final selection should be confirmed according to fender model, rubber compound, installation layout, berthing condition and project requirements.

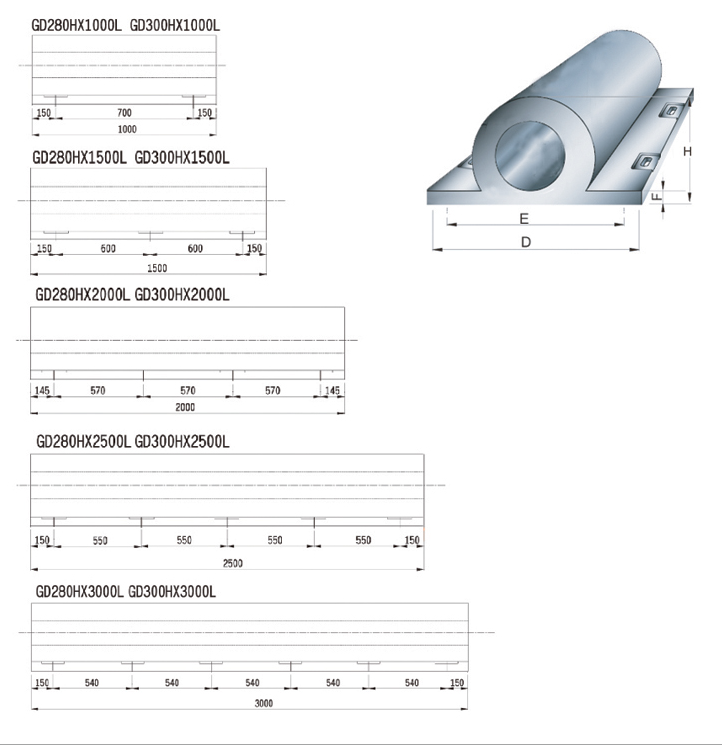

Standard Drawing and Fixing Layout

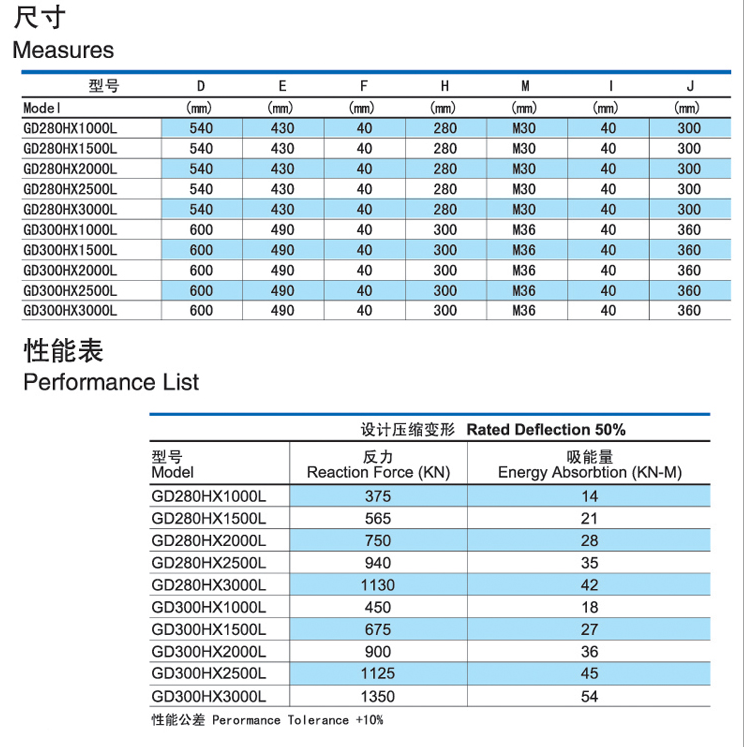

Size and Performance Table

Drawing, size and performance values are for reference only. Final length, hole spacing, bolt size, rubber compound and performance requirements can be confirmed according to project drawings or site conditions.

Need GD Rubber Fenders for Your Dock or Quay Project?

Send us your required model, length, quantity and fixing hole layout. YT Marine can manufacture GD280H and GD300H rubber fenders for dock edges, quay walls, berthing structures and corner protection projects.

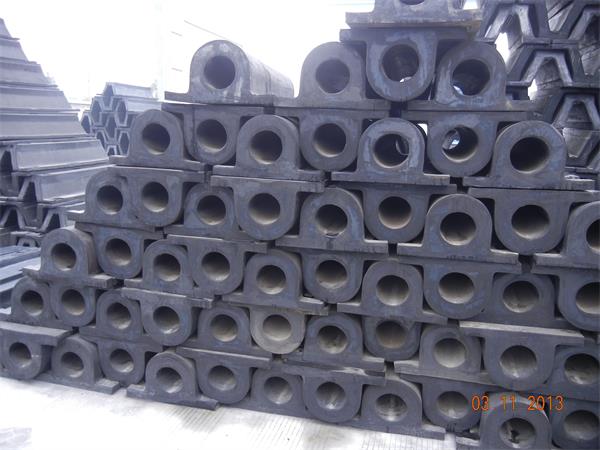

Quality Inspection Before Shipment

Before shipment, GD rubber fenders are checked for model size, profile dimensions, fixing hole position, surface condition, marking and quantity. Standard GD280H and GD300H profiles are inspected according to order requirements, and fixing layout details can be confirmed before delivery.

Model and profile dimension checking
Fixing hole position and bolt spacing confirmation
Surface condition and appearance inspection
Rubber body and mounting base checking
Marking, quantity and order detail confirmation
Pallet packing or shipment preparation if required

FAQ About GD Rubber Fenders

What are GD rubber fenders used for?

GD rubber fenders are used for dock edges, quay walls, berthing structures and corner protection areas where a heavy-duty rubber bumper profile is required. They help reduce direct contact between vessels and fixed structures during berthing or side contact.

What standard GD rubber fender models are available?

Standard GD rubber fender models include GD280H and GD300H, with different length options such as 1000L, 1500L, 2000L, 2500L and 3000L. Final model selection should be confirmed according to project drawings and installation requirements.

Can the fixing hole layout be customized?

Yes. Fixing hole position, bolt spacing and installation layout can be arranged according to standard drawings or project-specific requirements. Customers can provide drawings, site dimensions or reference photos for confirmation.

What information is needed for a quotation?

For quotation, please provide the required GD fender model, length, quantity, fixing hole layout, installation position and any available drawing or project requirement. If the model is not confirmed, our team can help check based on your application.

Are GD rubber fenders suitable for quay wall protection?

Yes. GD rubber fenders are suitable for quay walls, dock edges, berthing structures and corner areas. Their wide mounting base and hollow rubber structure make them practical for dock and quay protection projects.

Can YT Marine manufacture customized GD rubber fenders?

Yes. YT Marine can manufacture GD rubber fenders with standard or customized length, fixing layout and rubber compound according to order requirements. Size, performance and installation details can be confirmed before production.
